Battery Energy Storage Systems for Shopping Malls: Lower Electricity Costs and Improve Energy Efficiency

Shopping malls are among the most energy-intensive commercial buildings. HVAC systems, lighting, escalators, elevators, refrigeration, digital signage, security systems, and EV chargers can create large and highly variable electricity loads throughout the day.

For mall owners and operators, the challenge is not simply reducing total electricity consumption. In many markets, the cost of electricity also depends on when power is consumed and how high the facility's peak demand becomes.

A battery energy storage system (BESS) can help address both issues. By storing electricity when it is more economical and discharging during high-demand periods, a mall energy storage system can reduce peak demand, shift electricity consumption, improve solar self-consumption, and provide backup power for selected critical loads.

This makes commercial battery systems increasingly relevant for shopping malls, retail centers, supermarkets, mixed-use developments, and other large commercial facilities.

Understanding Commercial BESS for Shopping Malls

Why Shopping Malls Need BESS: Managing High Peak Demand and Utility Costs

Shopping malls typically experience significant changes in electricity demand during operating hours. HVAC systems may run at high capacity during hot afternoons, while lighting, elevators, escalators, refrigeration, and tenant loads operate simultaneously.

In electricity markets that include demand charges, the highest power demand during a billing period can have a significant impact on the monthly electricity bill. Research from the National Renewable Energy Laboratory found that demand charges can be an important factor in the economic viability of behind-the-meter battery storage for commercial buildings. In its analysis, more than 5 million U.S. commercial customers were on tariffs with demand charges above $15/kW.

A BESS can discharge when the mall's power demand approaches a predefined limit. This strategy, commonly called peak shaving, reduces the amount of electricity that needs to be supplied by the utility during peak periods.

The actual savings depend on the local electricity tariff, load profile, battery size, operating strategy, and project cost. A detailed analysis of interval electricity data is therefore essential before selecting a system.

What Is a Shopping Mall Battery Energy Storage System?

A shopping mall battery energy storage system is a behind-the-meter energy storage solution designed to manage electricity consumption within a retail facility.

A typical commercial battery system includes:

• Lithium iron phosphate (LFP) battery modules or packs
• Battery management system (BMS)
• Power conversion system (PCS)
• Energy management system (EMS)
• Thermal management equipment
• Fire detection and protection systems
• Electrical protection and distribution equipment
• Monitoring and communication systems

The system can be connected to the mall's electrical distribution system and programmed to respond to electricity prices, demand limits, solar generation, battery state of charge, and other operating conditions.

How BESS Works: Charge, Store, and Discharge Cycles for Retail Facilities

The operating principle is straightforward.

1. Charge: The battery charges when electricity is relatively inexpensive, when solar generation exceeds the mall's immediate demand, or according to the site's energy management strategy.
2. Store: Energy remains stored in the battery until it is needed.
3. Discharge: The BESS supplies power to the mall during peak demand periods, high-price periods, solar production gaps, or selected grid outages.

Advanced EMS software can coordinate these operating modes automatically. NREL's commercial battery modeling tools, for example, include peak-shaving strategies specifically designed to reduce billing demand when electricity tariffs contain demand charges.

Core System Anatomy: LFP Batteries, Bi-Directional Inverters, and EMS

Key Financial and Operational Benefits for Retail Malls

Reducing Peak Demand Charges and Shifting Load Profiles

Peak shaving is often one of the most important applications for commercial energy storage.

Instead of allowing the mall to draw its entire instantaneous load from the grid, the BESS can supply part of the demand during predefined peak periods. This reduces the facility's grid demand and can lower demand-related charges where the local tariff structure supports this strategy.

NREL research has identified peak demand charges as one of the major economic drivers for commercial battery storage.

However, battery capacity alone does not determine the potential savings. The system must have sufficient power output to control the mall's peak load and sufficient usable energy to maintain that output for the required period.

Providing Backup Power for Critical Mall Loads

A commercial battery system can also provide backup power during grid interruptions.

A shopping mall does not necessarily need to keep every load operating during an outage. The BESS can instead prioritize critical systems such as:

• Emergency lighting
• Security and surveillance systems
• Fire and life-safety equipment
• Communication systems
• Access control systems
• Selected refrigeration loads
• IT and network equipment
• Other designated essential services

The backup strategy depends on the electrical architecture and whether the system is designed for islanding or emergency operation. Proper transfer equipment, protection coordination, and local electrical-code compliance are essential.

Supporting EV Charging Infrastructure Without Immediately Increasing Grid Demand

EV charging can create substantial short-duration power demand, particularly when multiple high-power chargers operate simultaneously.

A BESS can be integrated with EV charging infrastructure to manage charging demand. Instead of requiring the grid connection to supply the maximum combined charging load at all times, the battery can provide part of the required power during charging peaks.

This approach can be particularly useful for shopping centers where EV charging demand is increasing but grid capacity or transformer capacity is limited.

The exact economics depend on charger utilization, charging power, local electricity tariffs, available grid capacity, and the cost of electrical infrastructure upgrades.

Integrating On-Site Solar PV for Higher Self-Consumption

Many shopping malls have large rooftops or parking areas that can accommodate solar PV systems. However, solar generation does not always match the mall's electricity demand.

During periods of strong solar production, the PV system may generate more electricity than the mall can immediately consume. A battery can store some of this excess energy and discharge it later when electricity demand rises.

Research has shown that combining solar PV with battery storage can provide greater demand-charge savings than either technology alone under certain tariff structures.

A typical solar-plus-storage strategy may look like this:

Improving Energy Management and Sustainability Performance

Beyond direct electricity savings, energy storage can become part of a mall's broader energy management strategy.

By combining BESS, solar PV, smart meters, building management systems, EV chargers, and an EMS platform, mall operators can obtain a more detailed view of how electricity is consumed across the facility.

This can support energy-efficiency programs, renewable-energy targets, carbon-reduction initiatives, and corporate sustainability reporting.

Commercial Storage Configurations: Cabinets vs. Containerized Systems

Air-Cooled vs. Liquid-Cooled Energy Storage Cabinets

The appropriate thermal management technology depends on system size, installation conditions, operating environment, required power density, and project economics.

Air-cooled battery cabinets can offer a relatively straightforward solution for smaller and medium-sized commercial installations. Liquid-cooled systems can provide more precise thermal management and are increasingly used for higher-energy-density applications.

For shopping malls, the decision should consider not only energy capacity but also installation space, ambient temperature, noise, maintenance access, fire protection requirements, and local regulations.

Modular Containerized BESS for Large Shopping Complexes

Large regional shopping malls or mixed-use developments may require significantly higher energy capacity and power output than a single cabinet can provide.

Containerized BESS can integrate multiple battery racks, PCS equipment, thermal management, fire protection, and auxiliary systems within a modular outdoor installation.

This configuration can be suitable when the project has sufficient outdoor space and requires a larger commercial battery system.

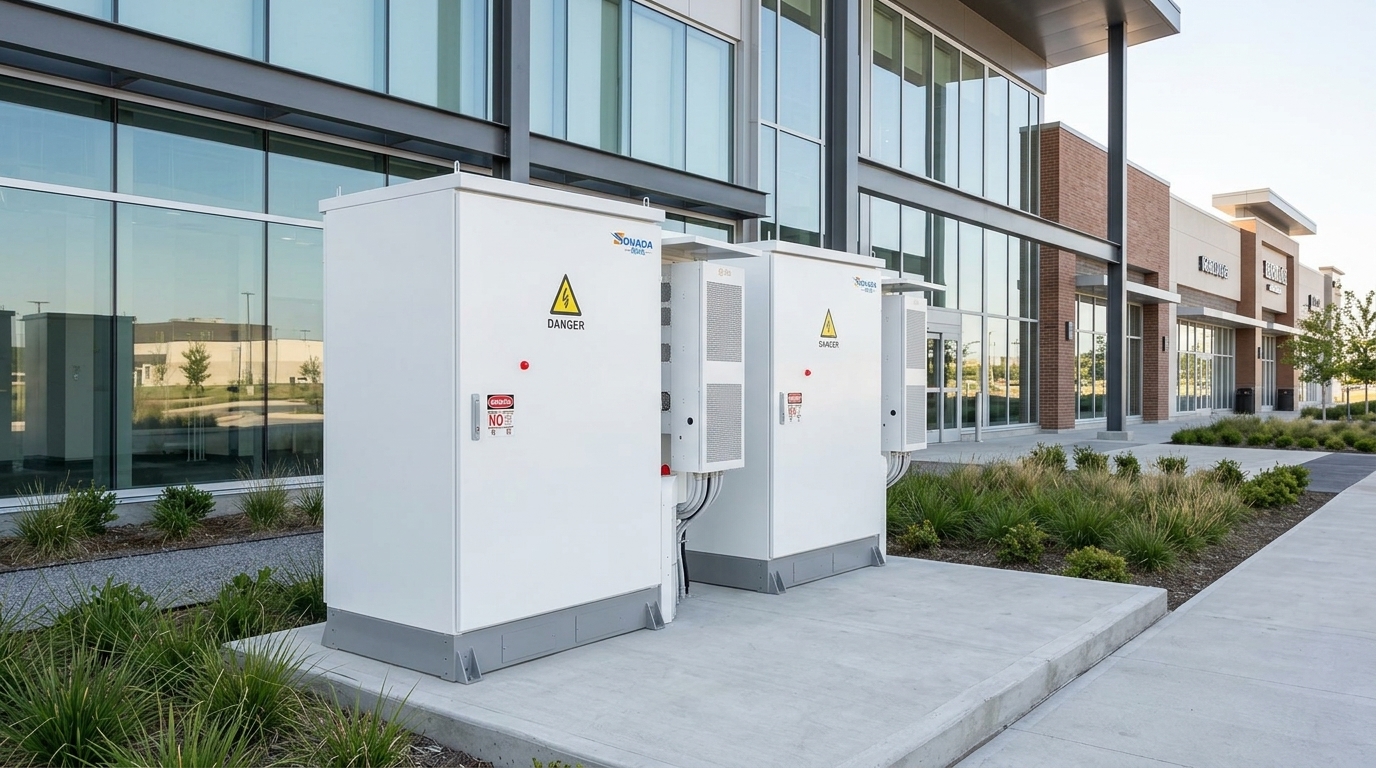

Indoor vs. Outdoor Retail Placement

Site selection should be considered early in the project design.

Potential locations include dedicated electrical rooms, service areas, parking lots, utility zones, or other approved outdoor locations. The final location must satisfy local fire codes, electrical requirements, emergency-access rules, ventilation or thermal-management requirements, and separation distances.

For a shopping mall, aesthetics and customer safety also matter. A well-planned installation should minimize disruption to customers, tenants, parking operations, and emergency access.

Sizing and Technical Integration for Mall Load Profiles

Analyzing 15-Minute Interval Data for Precise Peak Shaving

One of the most important steps in designing mall energy storage is understanding the facility's actual load profile.

Monthly electricity consumption alone is not enough to determine the correct BESS size. Ideally, the project team should obtain interval data showing electricity demand throughout the day.

Important information includes:

• 15-minute or shorter interval demand data
• Monthly peak demand
• Time-of-use electricity rates
• Demand charge structure
• Annual electricity consumption
• Solar PV generation data
• EV charging load
• Historical outage information

The objective is to determine when the mall reaches its highest demand and how much battery power is needed to reduce that peak.

Sizing Batteries for HVAC, Lighting, Escalators, and Other Heavy Loads

Shopping mall loads can be highly variable. HVAC systems may dominate demand during extreme weather, while escalators, elevators, refrigeration, lighting, and tenant equipment contribute to the overall load profile.

BESS sizing should therefore consider two separate parameters:

• Power capacity: measured in kW or MW, indicating how much instantaneous power the battery can provide.
• Energy capacity: measured in kWh or MWh, indicating how long the battery can provide that power.

For example, a 1 MW / 2 MWh system and a 1 MW / 4 MWh system have the same maximum power output but different energy durations.

The correct configuration depends on whether the primary objective is short-duration peak shaving, time-of-use energy shifting, solar self-consumption, backup power, or a combination of several applications.

Smart Cloud EMS for Multi-Mall Portfolio Management

Operators with multiple shopping centers can benefit from centralized energy monitoring.

A cloud-based EMS can collect information from individual sites and provide visibility into battery state of charge, power demand, solar generation, charging and discharging behavior, alarms, and system performance.

Portfolio-level monitoring can also help operators compare energy performance between sites and identify locations where additional energy-efficiency measures may provide value.

Safety, Siting, and Code Compliance in Public Retail Spaces

Navigating Fire Safety Regulations and Battery Certifications

Safety requirements are particularly important when battery systems are installed near customers, tenants, employees, and public facilities.

Project developers should evaluate applicable local fire codes, electrical codes, building regulations, grid-connection requirements, and battery-system certification requirements.

Depending on the project location and equipment configuration, standards and testing requirements such as UL 9540 and UL 9540A may be relevant in the United States. Other markets may apply different national or regional standards.

Compliance should be confirmed with the local authority having jurisdiction and qualified engineering professionals before installation.

Optimal On-Site Location: Parking Lots, Utility Rooms, or Dedicated Outdoor Areas

There is no universal best location for a mall BESS.

An electrical room may simplify integration but may have limited space. A parking-area installation may provide easier access and expansion potential but requires careful consideration of vehicle movement, fire separation, weather protection, and customer safety.

The final location should be selected based on electrical connection points, fire safety, accessibility, environmental conditions, maintenance requirements, and local regulations.

Thermal Management and Multi-Layer System Protection

Modern commercial battery systems use multiple layers of protection rather than relying on a single safety mechanism.

These can include cell-level monitoring, battery management systems, temperature monitoring, overcurrent protection, insulation monitoring, thermal management, smoke or gas detection, fire suppression, emergency shutdown functions, and system-level controls.

For public commercial environments, safety engineering should be treated as a core part of system design rather than an optional feature.

Financial Incentives, Energy Savings, and ROI Projections

Evaluating Tax Credits and Regional Energy Storage Incentives

The financial case for a commercial battery system depends heavily on the local market.

Some regions offer investment incentives, rebates, tax benefits, demand-response programs, or other support mechanisms for energy storage and renewable energy projects.

These programs change frequently and should be verified with the relevant government agency, utility, or qualified tax professional before being included in a project financial model.

Understanding Depreciation and Commercial Project Economics

For commercial projects, the financial model can include more than electricity-bill savings. Depending on the country and ownership structure, project developers may need to consider depreciation, tax treatment, financing costs, maintenance, battery degradation, insurance, replacement costs, and residual value.

These factors can materially affect the project's overall economics.

Building a Realistic Cost-Benefit Analysis

A realistic BESS ROI model should compare the project's expected annual benefits with the complete lifecycle cost of the system.

A simple payback calculation can be useful as an initial screening tool, but a more complete financial model should account for battery degradation, financing, maintenance, tariff changes, and system replacement requirements.

Implementation Roadmap: From Energy Audit to Deployment

Conducting a Comprehensive Retail Energy and Power Quality Audit

The project should begin with data rather than a predetermined battery size.

The energy audit should examine the mall's electricity consumption, peak demand, load profile, tariff structure, power quality, solar generation, EV charging requirements, and critical loads.

This information establishes the technical and economic requirements for the BESS.

Selecting the Right System Integrator and Battery Manufacturer

Choosing a commercial battery supplier involves more than comparing battery capacity and equipment prices.

Project developers should evaluate:

• Battery chemistry and cell quality
• System certification
• PCS compatibility
• EMS capabilities
• Thermal management design
• Fire protection architecture
• Warranty terms
• Cycle-life expectations
• Remote monitoring
• After-sales technical support
• Local installation and maintenance capability

For EPC companies and system integrators, direct communication with an experienced commercial battery manufacturer can also simplify customization, technical documentation, and project-level configuration.

Deploying a Pilot Project vs. Portfolio-Wide Rollout

For mall operators with multiple locations, a pilot project can provide valuable operational data before a wider deployment.

A suitable pilot site can be selected based on high demand charges, significant solar potential, EV charging demand, frequent grid interruptions, or a particularly suitable load profile.

After several months of operation, measured performance can be compared with the original energy model before expanding the solution to additional properties.

Frequently Asked Questions About Mall Energy Storage

How Long Does a Shopping Mall BESS Typically Take to Achieve Payback?

There is no universal payback period for shopping mall energy storage. Project economics depend on electricity tariffs, demand charges, battery system cost, operating strategy, solar generation, financing, and available incentives.

High demand charges can create stronger opportunities for peak-shaving applications, while markets with relatively flat electricity rates may require additional value streams to achieve attractive economics.

What Battery Chemistry and Thermal System Are Suitable for Shopping Malls?

Lithium iron phosphate (LFP) batteries are widely used in modern commercial energy storage because of their combination of energy density, cycle performance, and safety characteristics.

The choice between air cooling and liquid cooling depends on system size, energy density, environmental conditions, installation requirements, and project economics.

The battery chemistry alone should not be treated as the complete safety assessment. Cell design, BMS architecture, thermal management, system integration, fire protection, certification, installation, and operating procedures all contribute to overall system safety.

Can Battery Storage Help Shopping Malls Participate in Demand Response and Grid Services?

Potentially, yes. Depending on the local electricity market and utility program, a commercial BESS may participate in demand response or other grid-support programs.

NREL identifies demand charge reduction, energy arbitrage, demand response, and backup power as potential value streams for commercial energy storage.

However, eligibility, compensation, technical requirements, and market access vary significantly between regions. A project should not assume grid-service revenue until the applicable utility or market rules have been confirmed.

Why Mall Energy Storage Is Becoming Part of Modern Retail Energy Management

Shopping malls have a combination of characteristics that make energy management particularly important: large electricity loads, variable demand, HVAC requirements, long operating hours, growing EV charging demand, and increasing interest in on-site renewable energy.

A well-designed commercial battery system can address several of these challenges through peak shaving, energy shifting, solar self-consumption, EV charging support, and backup power.

The most important step is not choosing the largest battery. It is matching the BESS configuration to the mall's actual electricity tariff, load profile, operating schedule, and project objectives.

For mall owners, developers, and EPC companies, a data-driven energy analysis can determine whether battery storage is technically suitable and which combination of power capacity, energy capacity, solar PV, and EMS functions can deliver the intended result.
