Wholesale Custom High Performance 261kWh System Commercial Energy Outdoor 125kW
BND-AIO1250-2610
Wholesale high-performance 125kW/261kWh C&I outdoor LiFePO4 energy storage system. Direct factory OEM/ODM customization supported.
minimum order
1 piece
Quantity:
Wholesale Custom High Performance 261kWh System Commercial Energy Outdoor 125kW
| Model | BND–AIO1250–2610 |
|---|---|
| Main Parameter | |
| Battery Chemistry | LiFePO4 |
| Capacity(Ah) | 314 |
| Nominal Voltage (V) | 832 |
| Operating Voltage(V) | 650~949 |
| Energy (KWh) | 261 |
| Max. Continuous Charge Current | 180A |
| Max. Continuous Discharge Current | 180A |

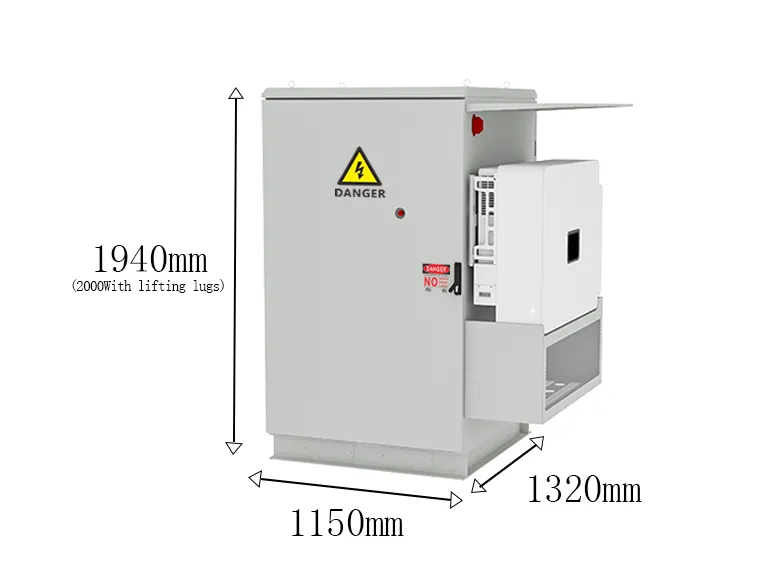

| Dimension (mm) | 1150*1320*1940(2000Withlifting lugs) |
| IP Rating of Enclosure | IP54 |
| Operating Temperature | Charge:0~+55℃/Discharge:–20℃~+55℃ |
| Storage Temperature | 0℃~+35℃ |
| Humidity | 5%~95% |
| Altitude | ≤3000m |
| Cycle Life | ≥8000(25℃±2℃,0.5C/0.5C,70%EOL)(DOD90%) |
| Installation | Cabinet Installation |
| Communication Port | CAN |
| Warranty Period | 5 years |
