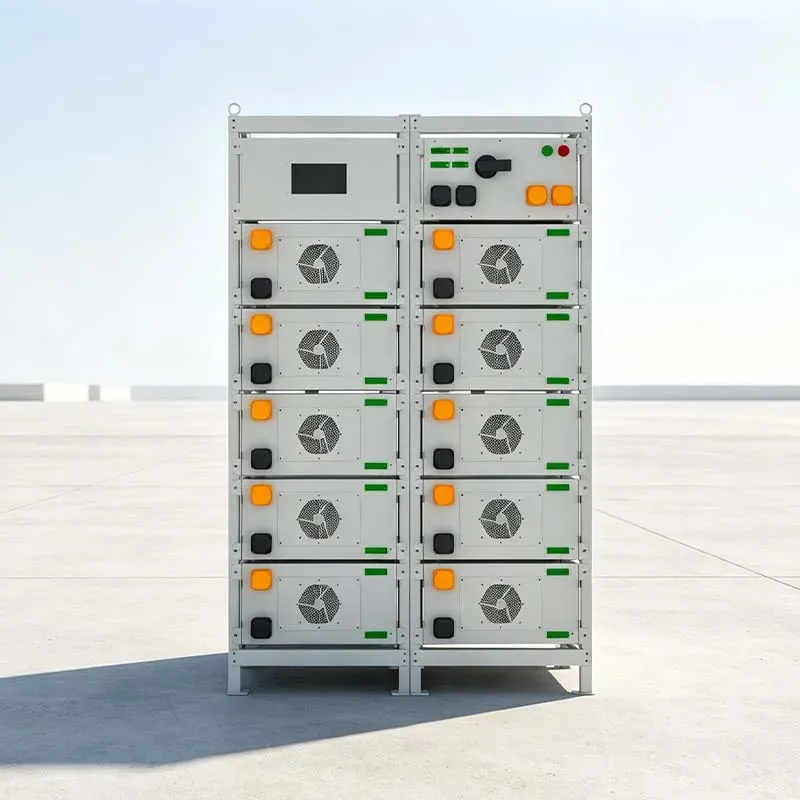

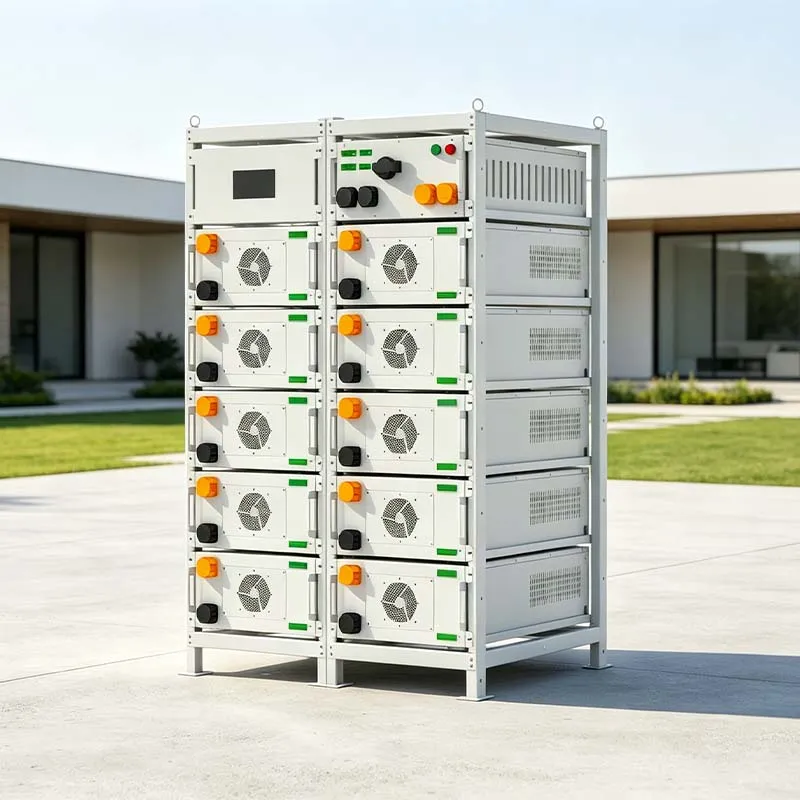

160kWh Energy Storage High Voltage Cabinet Battery Rack-mounted
BND–RMHV1600
High-voltage 160kWh rack-mounted energy storage cabinet with LFP cells & advanced BMS. Tailored for commercial power expansion & solar backup. Direct OEM/ODM.
minimum order
1 piece
Quantity:
160kWh Energy Storage High Voltage Cabinet Battery Rack-mounted
| Model | BND–RMHV1600 |
|---|---|
| Main Parameter | |
| Battery Chemistry | LiFePO4 |
| Capacity(Ah) | 314 |
| Nominal Voltage (V) | 512 |
| Operating Voltage(V) | 400~584 |
| Energy (KWh) | 160 |
| Max. Continuous Charge Current | 140A |
| Max. Continuous Discharge Current | 160A |

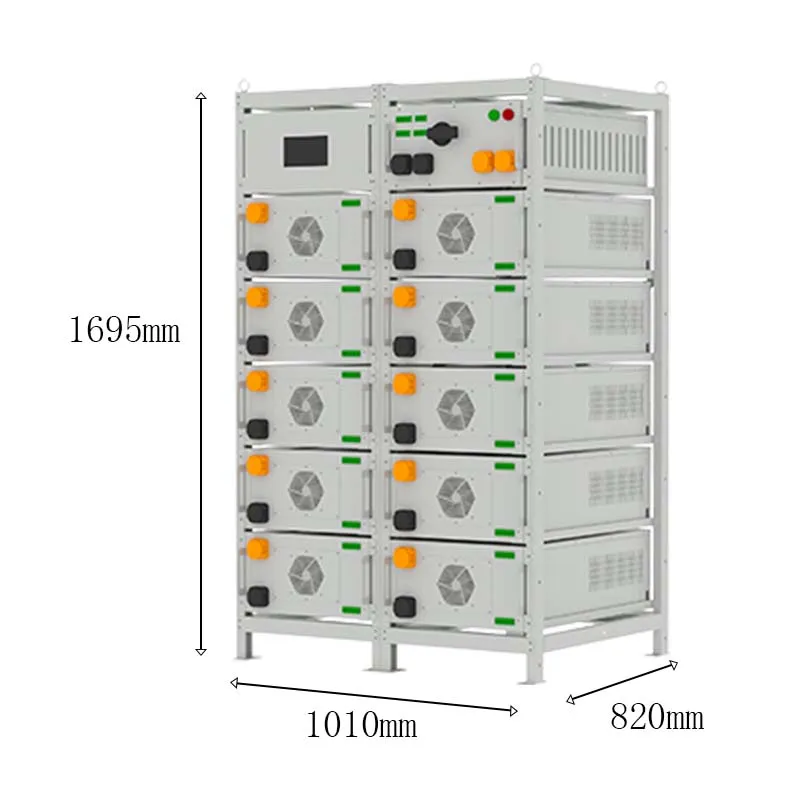

| Dimension (mm) | 1010*820*1695 |
| IP Rating of Enclosure | IP21 |
| Operating Temperature | Charge:0~+55℃/Discharge:–20℃~+55℃ |
| Storage Temperature | 0℃~+35℃ |
| Humidity | 5%~95% |
| Altitude | ≤3000m |
| Cycle Life | ≥8000(25℃±2℃,0.5C/0.5C70%EOL)(DOD90%) |
| Installation | Rack–Mounted |
| Communication Port | CAN |
| Warranty Period | 5 years |
| Certification | UN38.3,CE |
