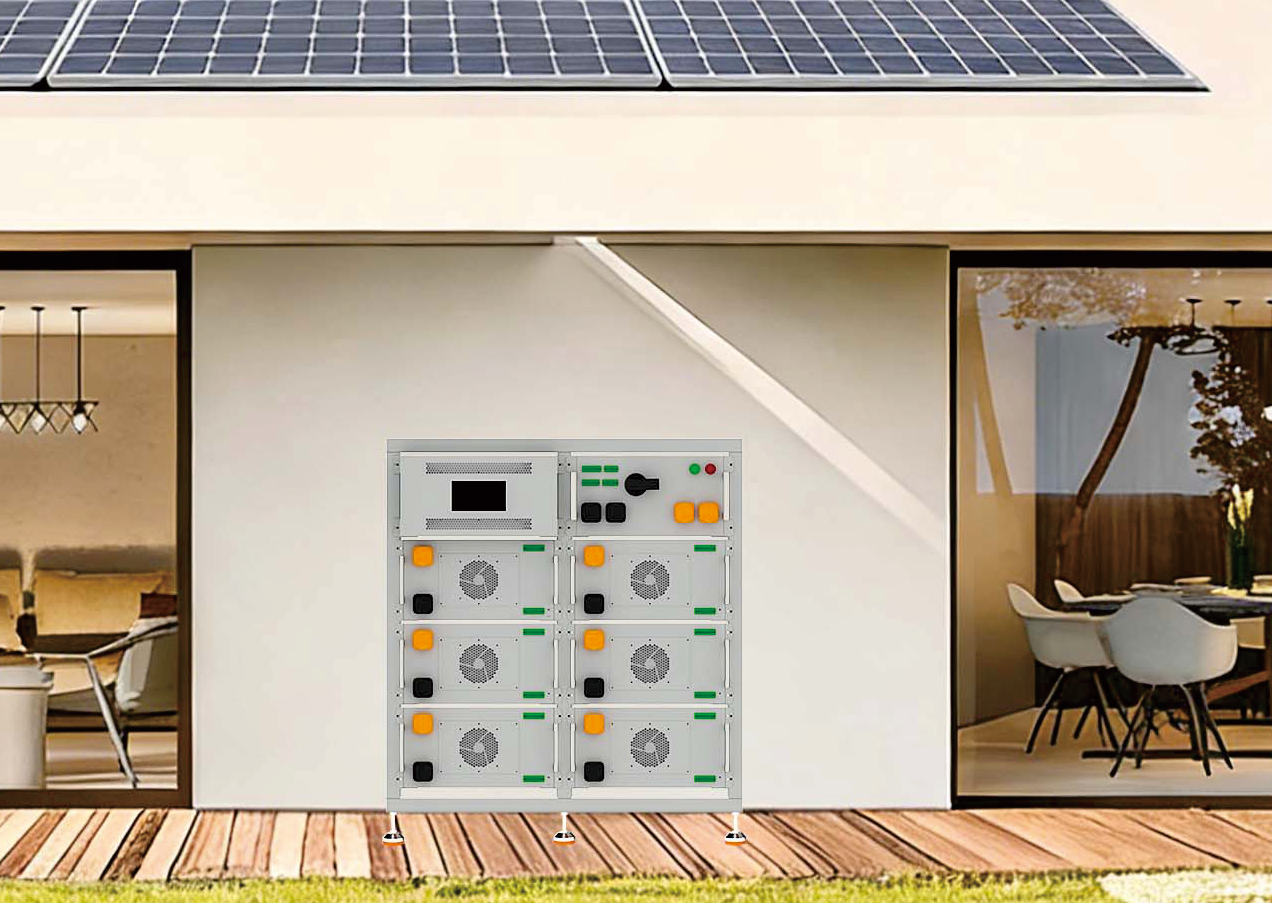

solis 50Kw Inverter + 113KWh Rack-mounted energy storage system
BND-RMHV113
·All-in-One Integration
Built-in Battery/Fire Protection/Temperature Control/Monitoring, Ready for Immediate Installation and Use Upon Delivery.
·Elastic Scalability
Modular design allows for flexible capacity adjustment, catering to dynamic demands.
·Intelligent BMS
It has protection functions including over-discharge, over-charge, over-current and over-high or low temperature. The systemcan automatically manage charge and discharge state and balance current and voltage of each cell.
·Eco-friendly
The whole module is non-toxic, non-polluting and environmentally friendly.
·Flexible Configuration
Multiple battery modules can be in parallel for expanding capacity and power.Support USB upgrade,wifi upgrade (optional), remote upgrade (Compatible with Deye inverter).
·Wide Temperature
Working temperature range is from -20℃ to 55℃, with excellent discharge performance and cycle life.
·Smart Scenarios
Peak Shaving and Valley Filling; Demand Response, Backup Power Support: Remote Strategy Upgrades, Reducing Operational Costs by 30%+.
Built-in Battery/Fire Protection/Temperature Control/Monitoring, Ready for Immediate Installation and Use Upon Delivery.
·Elastic Scalability
Modular design allows for flexible capacity adjustment, catering to dynamic demands.
·Intelligent BMS
It has protection functions including over-discharge, over-charge, over-current and over-high or low temperature. The systemcan automatically manage charge and discharge state and balance current and voltage of each cell.
·Eco-friendly
The whole module is non-toxic, non-polluting and environmentally friendly.
·Flexible Configuration
Multiple battery modules can be in parallel for expanding capacity and power.Support USB upgrade,wifi upgrade (optional), remote upgrade (Compatible with Deye inverter).
·Wide Temperature
Working temperature range is from -20℃ to 55℃, with excellent discharge performance and cycle life.
·Smart Scenarios
Peak Shaving and Valley Filling; Demand Response, Backup Power Support: Remote Strategy Upgrades, Reducing Operational Costs by 30%+.
Delivery
EXW
minimum order
1 piece
Supply Ability
100000000000piece / Month
Stock Time
45Day
Quantity:
solis 50Kw Inverter + 113KWh Rack-mounted energy storage system
solis 50Kw Inverter + 113KWh Rack-mounted energy storage system
| Model | BND-RMHV113 | ||
| Main Parameter | |||
| Battery Chemistry | LiFePO4 | ||
| Capacity(Ah) | 314 | ||
| Nominal Voltage (V) | 358.4 | ||
| Operating Voltage(V) | 302.4~403.2 | ||
| Energy (KWh) | 113 | ||
| Charge/ Discharge Current (A) |
| ||
| |||
| |||
| Dimension (mm) | 1010×870×1210 | ||
| IP Rating of Enclosure | IP21 | ||
| Operating Temperature | Charge: 0~+55℃ / Discharge: -20℃~+55℃ | ||
| Storage Temperature | 0℃~+35℃ | ||
| Humidity | 5%~95% | ||
| Altitude | ≤2000m | ||
| Cycle Life | ≥12000 (25℃±2℃, 0.2C/0.2C, 70%EOL) | ||
| Installation | Rack-Mounted | ||
| Communication Port | CAN | ||
| Warranty Period | 5 years | ||
| Certification | UN38.3, CE | ||
