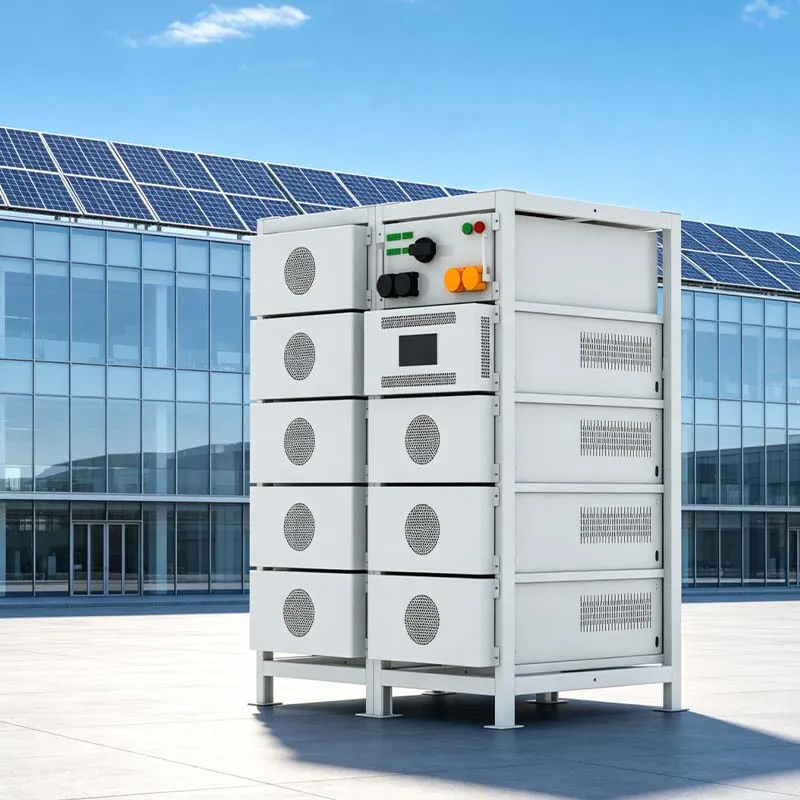

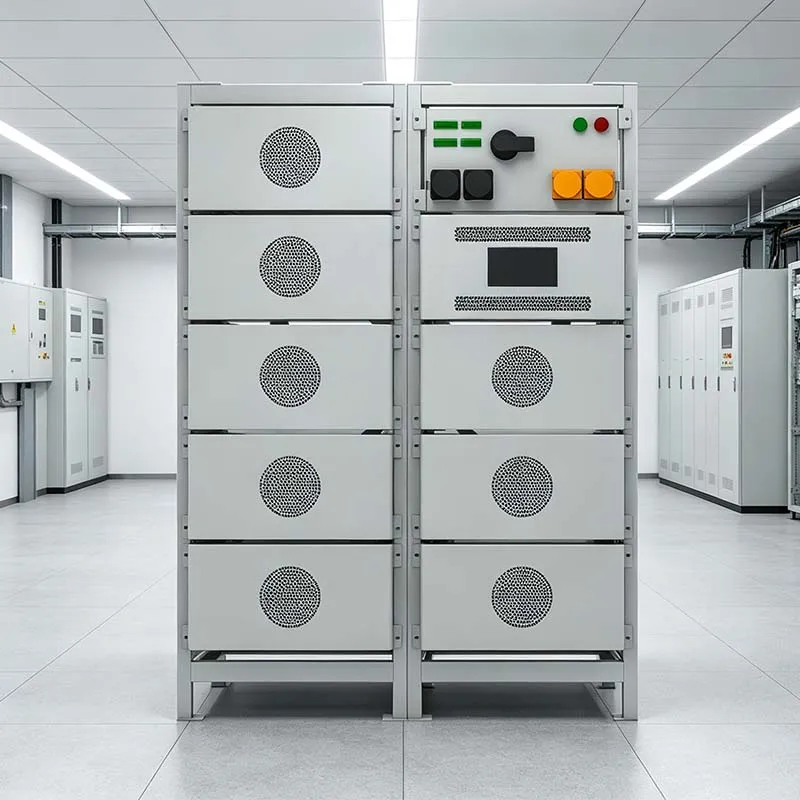

Battery Rack Cabinet ESS 145kWh Storage LiFePO4 System Cooling
BND–RMHV145
High-capacity 145kWh LiFePO4 battery rack cabinet with smart cooling & BMS. Built for C&I grid support, load balancing & solar storage. Direct OEM/ODM options.
minimum order
1 piece
Quantity:
Battery Rack Cabinet ESS 145kWh Storage LiFePO4 System Cooling
| Model | BND–RMHV145 |
|---|---|
| Main Parameter | |
| Battery Chemistry | LiFePO4 |
| Capacity(Ah) | 314 |
| Nominal Voltage (V) | 460.8 |
| Operating Voltage(V) | 388.8~518.4 |
| Energy (KWh) | 145 |
| Max. Continuous Charge Current | 157A |
| Max. Continuous Discharge Current | 180A |

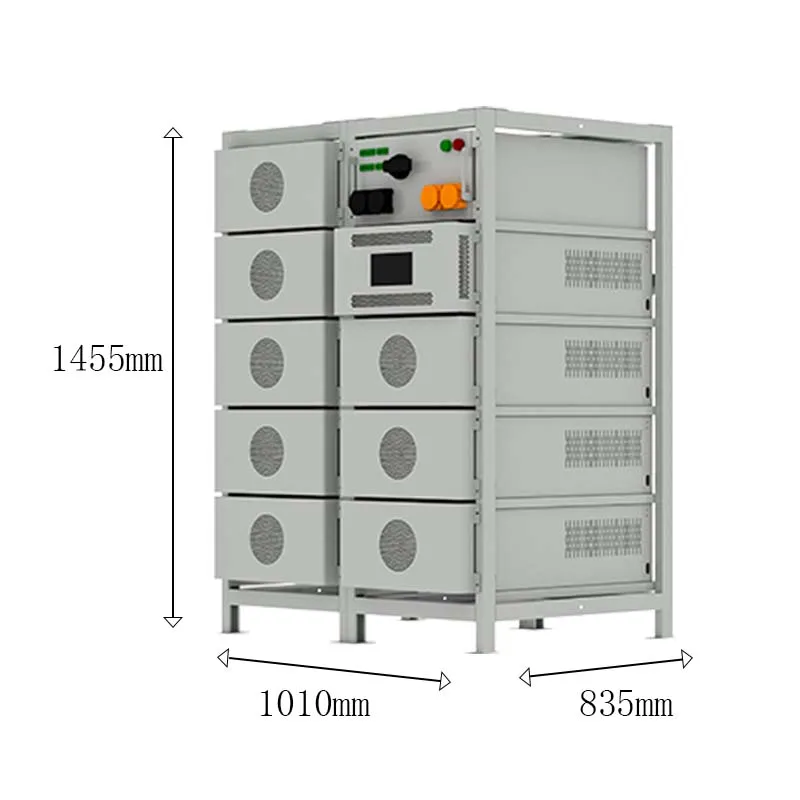

| Dimension (mm) | 1010*835*1455 |
| IP Rating of Enclosure | IP21 |
| Operating Temperature | Charge:0~+55℃/Discharge:–20℃~+55℃ |
| Storage Temperature | 0℃~+35℃ |
| Humidity | 5%~95% |
| Altitude | ≤3000m |
| Cycle Life | ≥8000(25℃±2℃,0.5C/0.5C,70%EOL)(DOD90%) |
| Installation | Rack–mounted installation |
| Communication Port | CAN |
| Warranty Period | 5 years |
