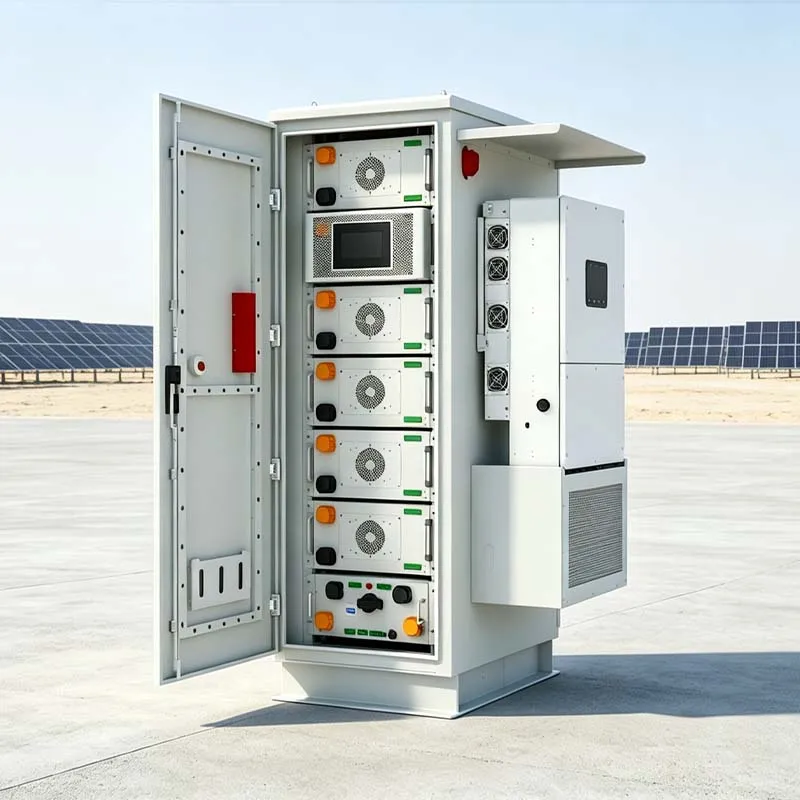

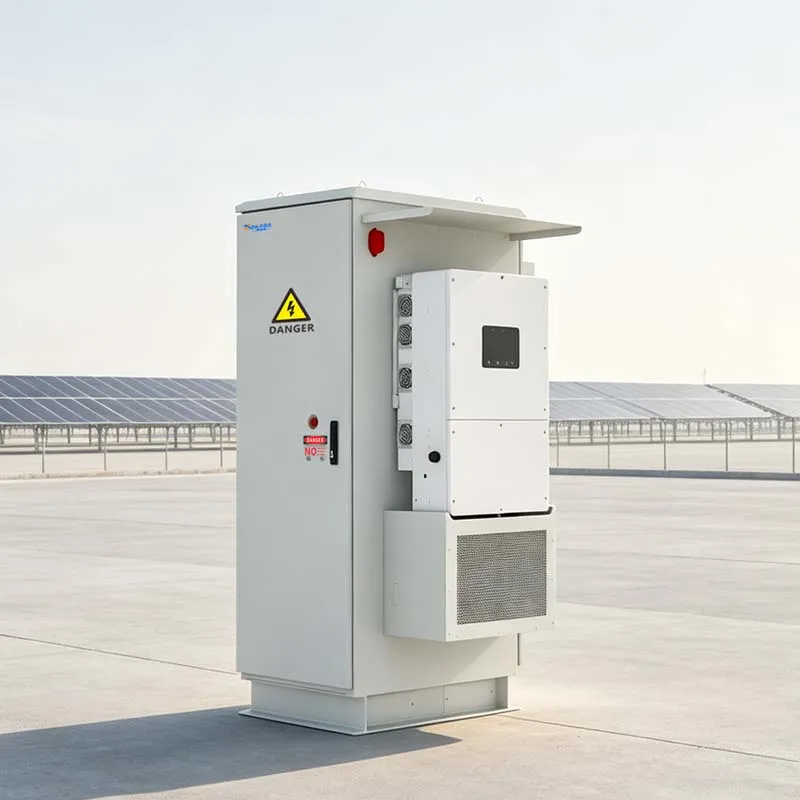

97kWh Energy Storage Cabinet System Outdoor Battery BESS All-in-One
BND–AIO500–970
Factory-direct 97kWh outdoor energy storage cabinet for smart load management & PV systems. Built-in LFP cells, PCS & fire protection. Custom OEM/ODM available.
minimum order
1 piece
Quantity:
97kWh Energy Storage Cabinet System Outdoor Battery BESS All-in-One
| Model | BND–AIO500–970 |
|---|---|
| Main Parameter | |
| Battery Chemistry | LiFePO4 |
| Capacity(Ah) | 314 |
| Nominal Voltage (V) | 307.2 |
| Operating Voltage(V) | 240~350.4 |
| Energy (KWh) | 97 |
| Max. Continuous Charge Current | 180A |
| Max. Continuous Discharge Current | 180A |

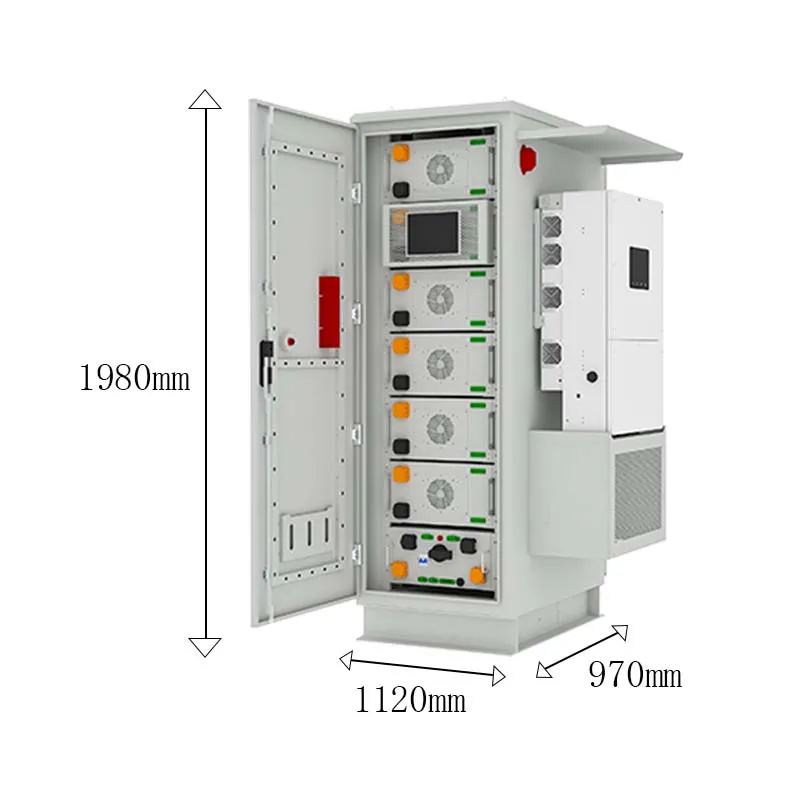

| Dimension (mm) | 1085*650(1000)*1980 |
| IP Rating of Enclosure | IP54 |
| Operating Temperature | Charge:0~+55℃/Discharge:–20℃~+55℃ |
| Storage Temperature | 0℃~+35℃ |
| Humidity | 5%~95% |
| Altitude | ≤3000m |
| Cycle Life | ≥8000(25℃±2℃,0.5C/0.5C,70%EOL)(DOD90%) |
| Installation | Cabinet Installation |
| Communication Port | CAN |
| Warranty Period | 5 years |
