kVA vs kW Explained: How to Properly Size Inverters and BESS Systems

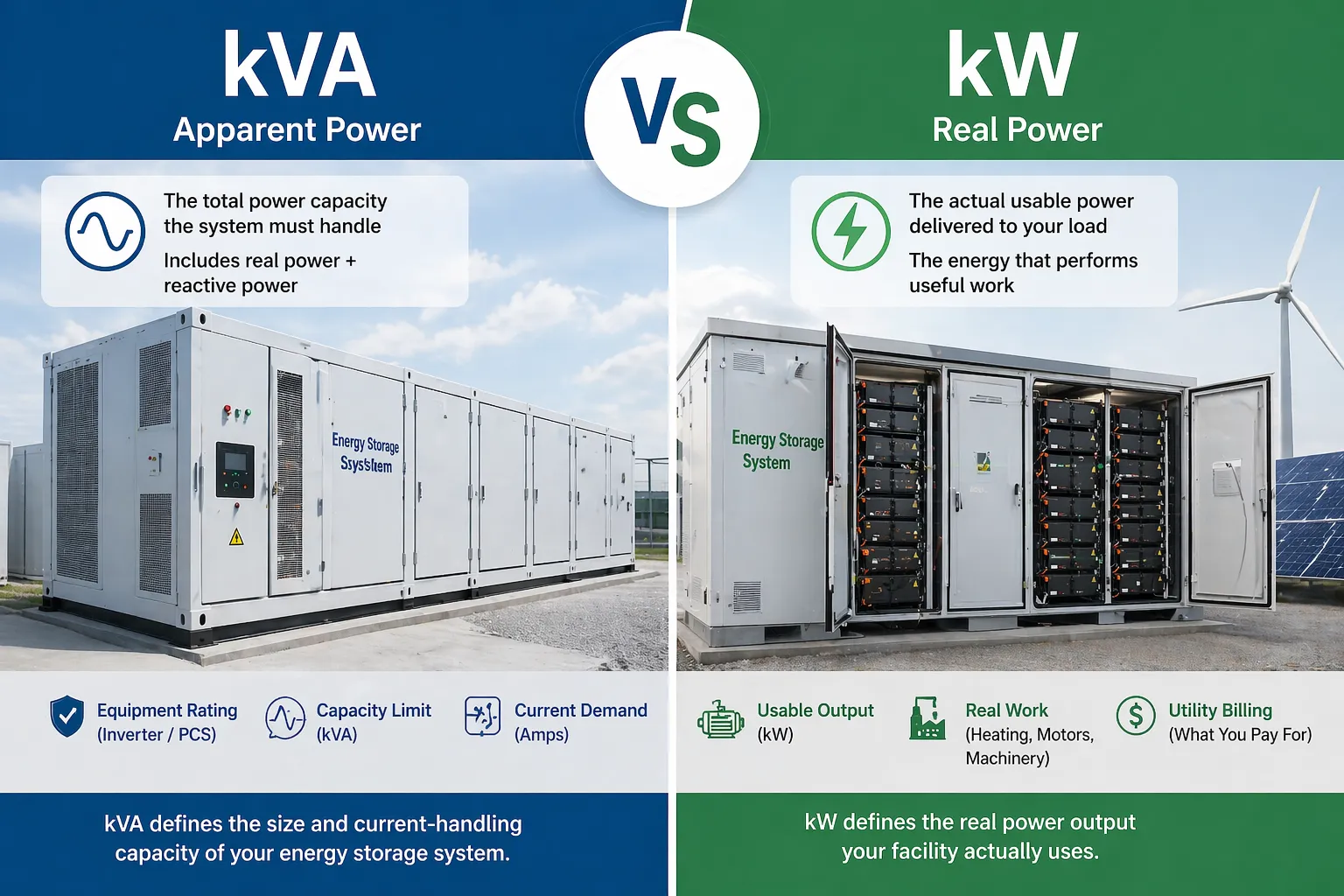

The fundamental difference between kVA and kW lies in their definition of power: kW (kilowatt) represents real power—the actual energy that performs useful work, like heating a room or running a motor—while kVA (kilovolt-ampere) represents apparent power, which is the total capacity the system must handle, including the reactive power that oscillates back and forth. In industrial Battery Energy Storage Systems (BESS), this distinction is vital. If your electrical equipment has a power factor of 0.8, a 100 kVA inverter can only provide 80 kW of usable real power. Ignoring this difference often leads to undersized hardware that trips under heavy industrial loads. For engineers and facility managers, kVA defines the "size" of the equipment (inverter rating), whereas kW defines the "output" required by your facility's machinery. Choosing the right equipment requires aligning both metrics to your actual load profile.

In Terms of Meaning

kW (Kilowatt) is the "Real Power." It is the energy actually consumed by your devices to turn gears, light lamps, or power electronics. It is what your electricity meter tracks and what you pay the utility company for.
kVA (Kilovolt-ampere) is the "Apparent Power." It is the product of voltage and current in a circuit. It represents the total load on the electrical infrastructure, including the "wasted" energy that creates magnetic fields in motors or transformers.

In Terms of Application Scenarios

When you purchase a generator or an inverter, the rating is almost always in kVA. This is because the internal copper windings and electronic components must be sized to handle the total current (kVA), regardless of whether all that energy is doing "work" (kW) or just circulating.

Technical Constraint: When sizing an industrial BESS, you must pay attention to the maximum current (Amperage) capacity of your PCS (Power Conversion System). If your total system load exceeds the kVA rating, the inverter will enter a current-limiting state or overheat, even if the real power (kW) seems to be within range. For high-voltage 1000V DC architectures, this becomes even more sensitive; if the apparent power (kVA) demand forces the current too high, the resulting resistive heating (I²R loss) in your cabling can trigger a system-wide shutdown to prevent cable insulation failure.

In Terms of Interrelationship

The relationship between the two is defined by the Power Factor (PF):
kW = kVA × Power Factor

In an ideal world, the power factor would be 1.0 (1 kW = 1 kVA). However, industrial equipment—especially large inductive motors and transformers—typically has a power factor between 0.7 and 0.9. This means you always need more kVA capacity than the actual kW output you intend to use. When designing a power system for a factory or villa, always divide your required kW by the expected power factor (e.g., 0.85) to select an inverter or generator with the correct kVA rating.

Friendly reminder

Understanding the difference between kVA and kW is not just an academic exercise—it is the difference between a system that runs reliably and one that constantly trips under load. Always remember: kW is what you use; kVA is what you must provide for. Whether you are configuring a BESS for a villa or a large-scale factory, neglecting the power factor leads to undersized inverters and wasted electrical capacity. By sizing your equipment based on the higher kVA demand and respecting the current-carrying constraints of your 1000V DC lines, you ensure your system remains stable, efficient, and ready for your facility’s peak demands.

Engineering FAQ: kVA vs. kW Reality Check

1. "I bought a 100kW inverter, but it trips when I hit 85kW. Why?"

You likely ignored the Power Factor (PF). If your inverter is rated for 100kVA and has a PF of 0.8, its real power (kW) limit is actually 80kW. When your load pushes toward 85kW, you are exceeding the current-handling capacity of the inverter's power modules. The inverter trips because it’s protecting its copper windings and IGBTs from overcurrent, not because your kW limit was "wrong."

2. "In a BESS project, why does the kVA rating matter more than kW for the cables?"

Because cables feel the Apparent Power (kVA), not the Real Power (kW). Electricity doesn't "know" if the energy you're drawing is performing work or just creating reactive magnetic fields—the current (Amps) creates heat in your cables regardless. If you size your cable based only on kW, you'll undersize your conductor cross-section, leading to voltage drop and a potential fire hazard.

3. "Does 1000V DC high-voltage architecture change the kVA vs. kW calculation?"

It makes the relationship more critical. In a 1000V DC system, the current needed to reach a certain kW output is much lower than in a 48V or 400V system. However, the apparent power (kVA) rating of the DC-DC stage is still limited by the physical limit of the magnetic components (inductors/transformers). You still need to ensure your kVA-rated hardware can handle the peak transient currents that happen during sudden load switching.

4. "Why do utility companies bill factories for kVA, not just kW?"

Because you are "using up" their capacity. Even if you aren't converting all your electricity into work (kW), the utility company still has to provide the Total Current (kVA) to your site to maintain the voltage. If your factory has a poor power factor, they have to run larger transformers and thicker lines just to feed your "reactive" power. They charge for kVA (or impose power factor penalties) to force you to invest in your own power factor correction.

5. "Can I use a power factor correction (PFC) bank to increase my kW output?"

Not quite—it doesn't increase your *actual* kW capacity; it just cleans up the power. By adding capacitors to cancel out the reactive power of your motors, you bring your Power Factor closer to 1.0. This frees up "room" in your existing kVA capacity, allowing you to run more real-power (kW) loads without tripping your main circuit breaker. Think of it as clearing the traffic jam in your wires so more "productive" energy can flow.
