Front-Mounted vs. Rear-Mounted BESS AC: Which Layout Wins for Industrial Energy Storage?

In the energy storage world, many choose cabinets like they’re buying clothes—focused only on "aesthetics." If you blindly opt for a rear-mounted AC unit just for a "clean front look," you’ll realize your mistake during a midnight emergency wiring fix or an AC compressor failure. Trading maintenance logic for visual appeal is a trap that bleeds O&M budgets dry. As an engineer who has spent a decade on the factory floor, let’s be clear: AC placement is a calculated trade-off between space utilization and serviceability.

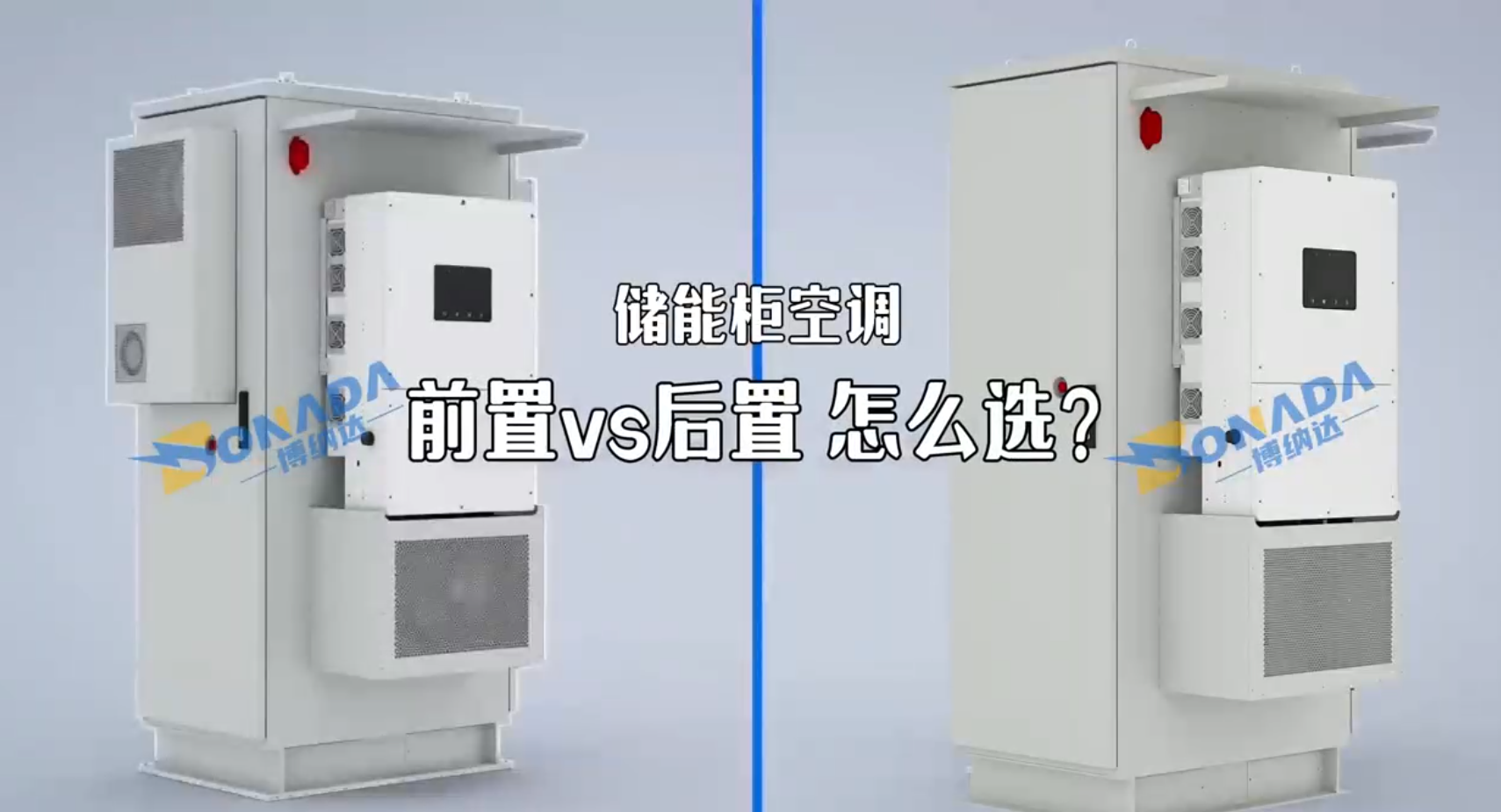

The Difference Between Front-Mounted and Rear-Mounted Air Conditioners for Energy Storage Cabinets

Front-Mounted AC Cabinet: The Engineering Practicalist

The front-mounted AC configuration is the "lifesaver" for small-to-medium C&I (Commercial & Industrial) projects, indoor machine rooms, and tight sites. The logic is simple: keep everything where you can see it.

• Unmatched Maintenance Efficiency: Switches, terminal blocks, AC filters, and core components are all on the front. Technicians don't need to act like rock climbers to reach a screw behind the cabinet.
• Superior Heat Management: Major heat sources (AC and power conversion parts) discharge heat forward. This prevents heat buildup in "dead corners" against walls, significantly reducing short-circuit risks caused by local overheating.
• Footprint Optimization: Since you don't need to leave a "person-sized" service aisle at the back, you can place cabinets directly against walls or in back-to-back configurations. This saves at least 30% of installation floor space.

Rear-Mounted AC Cabinet: The Aesthetic Professional

Rear-mounted AC units are common in utility-scale stations or "showcase projects." Their primary selling point is "Visual Uniformity."

• Clean Frontal Aesthetics: The front of the cabinet is a flat, clean iron face without a protruding AC unit. If your project faces government or investor inspections, this layout looks "premium."
• Internal Airflow Logic: In certain large-scale container designs, rear air ducts can achieve more uniform cold air penetration, offering a slight edge in cell-level temperature consistency.
• Environmental Isolation: Placing the AC at the rear separates the air intake/exhaust from the operator interface. In high-dust environments, this helps keep sensitive electronics on the front cleaner.

The "No-Nonsense" Comparison Table

BESS Engineering FAQ: Insights from the Field

Q1: What if I have zero space but want a rear-mounted AC?

If you choose rear-mounted and don’t leave at least 80cm of maintenance space, you’ll have to hire a crane to move the whole cabinet just to fix an AC fault. Save that crane rental fee and choose the Bonada Front-Mounted solution instead.

Q2: Does the front-mounted AC interfere with operational safety?

Not at all. Our front-mounted architecture physically isolates the electrical wiring area from the AC heat dissipation zone. The airflow is precision-engineered so that hot air never blows on the operator’s face or increases terminal temperature.

Q3: Which layout has a lower 10-year LCOE?

Over a 10-year cycle, front-mounted layouts typically offer a lower LCOE. Why? Labor hours. In many markets, O&M technician fees are several hundred dollars per hour. The front-mounted design drastically cuts down the time required for routine checks and repairs.

Friendly Reminder

If you are a factory owner or an EPC contractor, don't chase "fashion" over function. Front-mounted for maintenance; rear-mounted for uniformity. In the industrial field, the best equipment is the one that allows you to locate faults quickly and replace parts easily. Bonada offers comprehensive OEM/ODM customization for both 65kWh and 215kWh cabinet systems. Visit www.fjbnd.com to get your professional layout proposal.
