What Is Battery C-Rate? A Complete Guide to Charge/Discharge Rate

2025-05-14

What battery C-rate is—including its definition (C = I/Q), how discharge current affects battery capacity, and the relationship between C-rate, power (P), and energy (E). Bonada uses simple examples to help you understand how to choose the right C-rate for your battery.

C-rate definition

C-rate Definition & Formula：C-rate is the ratio of discharge current (I, in amps, A) to battery rated capacity (Q, in amp-hours, Ah), i.e., C = I/Q. It measures how fast a battery charges or discharges relative to its capacity.

Simple Examples：

A 10Ah battery discharged at 10A = 1C (drains fully in ~1 hour).
The same 10Ah battery discharged at 5A = 0.5C (drains fully in ~2 hours).
A 20Ah battery charged at 40A = 2C (charges fully in ~30 minutes).

Effect of discharge current on capacity

It is important to mention that the capacity is different when using different discharge currents for the same battery. For the same battery generally larger currents result in smaller total amounts of the electricity that can be discharged. For example: lets say there is a battery with a capacity of 1000mAh, and we discharge it using 1C (1000mA) the battery can discharge 1000mAh of electricity in 1 hour.

If we discharge it at larger current values such as 3C (3000mA), or 4C (4000mA) the chemical reaction speed increases inside the battery which decreases the total capacity of the battery because the internal chemistry is less efficient. When discharging at high rates there is also an increase in the thermal energy produced by the chemical reactions and the resistance inside the battery, resulting in an increase in the inefficient loss of electrical energy and a decrease of the total capacity of the battery. In practical uses it is necessary to choose a proper current with respect to the amount of permitted charge and discharge cycle rate and intended use of the battery so that the battery can provide the required power and energy without risking damage to the battery.

Why Capacity Drops with High C-Rate

With internal C rate increasing (ex. 3C, 4C), the discharges become extremely more competitive, as the electrochemical responses spend more time with efficiencies at the primary, secondary, & tertiary internal resistances. Heat is also lost at the Peukert limit which diminishes the internal energy. For instance, the 1000mAh battery free discharged at 1C: 1000mA fills up to 1000mAh. When three C is drawn, only 800 to 850mAh is available ex-situ.

Practical Tip

Different batteries serve unique purpose. Solar batteries stored at home are often used at C rates between 0.5C to 1C to ensure maximum lifecycle. Having used EV batteries, I can tell the charging C rate can be between 2C to 3C to optimize charging time.

Relationship between C-rate, power, and energy

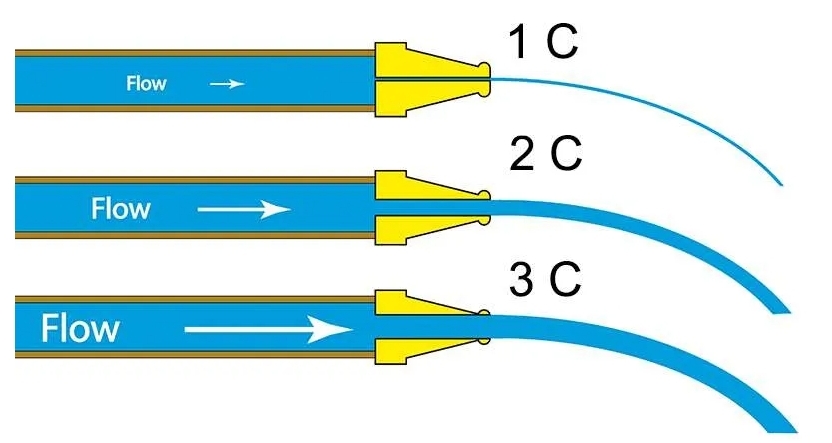

From the viewpoint of charge/discharge time, two batteries with the same capacity, but one has a larger charge/discharge rate, (the time to charge from 0% to 100%) - will charge faster. From charging's perspective: it is like filling a pool with water from a faucet. If the faucet uses a small water flow (the current is small, 1C) it takes longer to fill the pool with water (the battery's power). If the faucet uses a larger water flow (the current is large, 2C) it takes less time to fill the pool with water (the battery's power).

Although the variables relating to the charging and discharging rate can be manipulated by π=I/Q, you can get C=IU/UQ=P/E in numerical terms, namely, C=power/energy. (Power is in watts, energy is in watt-hours). Typically, when people refer to the scale of an energy storage system, they often describe it in the form of "system maximum power/system maximum capacity", where the system maximum capacity corresponds to the theoretical maximum total energy storage capacity of an energy storage system.

Relationship Breakdown

C-rate also equals the ratio of battery power (P, in watts, W) to energy (E, in watt-hours, Wh), i.e., C = P/E. Think of it like filling a pool: Power (P) is the “water flow rate” (how fast you fill), Energy (E) is the “pool volume” (total water it holds), and C-rate is how quickly you fill/empty relative to the pool size.

Energy Storage System Example

A 1MW/2MWh system: C = 1MW ÷ 2MWh = 0.5C (drains fully in 2 hours) → “energy-type system” (prioritizes long discharge time).
A 2MW/1MWh system: C = 2MW ÷ 1MWh = 2C (drains fully in 30 minutes) → “power-type system” (prioritizes fast power output).

Solar Battery C-rate FAQ

Q1: What is battery lifespan and how is it impacted by C-rate?

A1: Absolutely. Excessively high C-rates e.g 3C and above causes excessive heat and battery stress, thus shortening battery lifespan. A practical scenario to explain this is if a lithium-ion battery is used at 1C, it would last approximately 1000 cycles, but at 3C, it will only last between 500-600 cycles.

Q2: Do you think a higher C-rate is always a good thing?

A2: No, it is situational. Higher C rates will mean that charging and discharging will occur at a faster than normal rate, however, it will lower the overall capacity and lifespan of the battery. In the case of solar home storage, it is always better to have low C rates of between 0.5C-1C. In the case of racing electric vehicles, there is a need to have high C rates of 3C and above if the objective is to achieve quick acceleration.
