Differences Between Inverters and PCS: How to Choose the Right System for Energy Storage

If you're planning a solar or energy storage project, you've probably come across both inverters and PCS (Power Conversion Systems). On paper, they both convert DC to AC—but in real-world applications, the difference is much bigger than that.

From our engineering experience, choosing the wrong system here doesn't just affect performance—it directly impacts ROI, system flexibility, and even long-term reliability. So instead of giving you a textbook definition, let’s break this down the way it actually plays out in real projects.

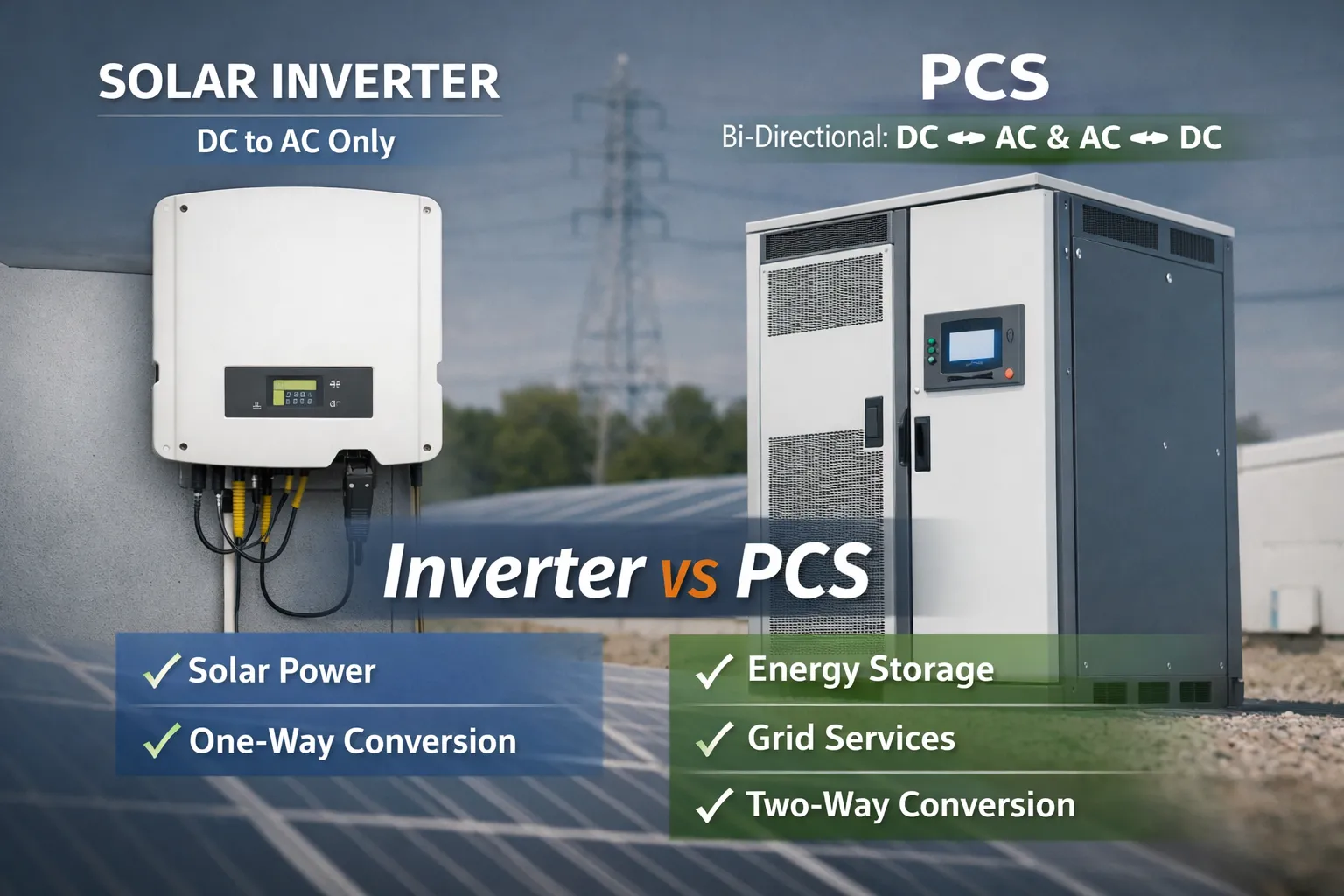

The Core Difference: One-Way vs Two-Way Energy Flow

A traditional solar inverter is built for a very specific job: converting DC power from solar panels into usable AC electricity. It works great—as long as your goal is simply to use or export solar power during the day.

But here’s the limitation: it only works in one direction. Once the sun goes down, it's basically idle.

A PCS (Power Conversion System), on the other hand, is designed for energy storage systems. It allows bi-directional power flow:

• Charge batteries from the grid or solar
• Discharge stored energy when needed
• Respond dynamically to load changes

In simple terms: an inverter handles generation, a PCS manages energy.

Why PCS Becomes Essential in BESS Projects

In most industrial or commercial projects we’ve worked on, adding storage changes everything. You're no longer just generating power—you’re deciding when and how to use it.

This is where a PCS becomes the core component of a BESS (Battery Energy Storage System).

Typical real-world use cases include:

• Peak shaving: reduce demand charges by discharging during peak hours
• Load shifting: store cheap electricity and use it later
• Backup power: keep critical loads running during outages
• Grid services: frequency regulation or demand response

A standard inverter simply cannot perform these tasks—no matter how advanced it is.

Technical Reality: Voltage, Current, and System Stress

When designing large-scale systems, voltage level matters more than most people expect.

Today, most PCS solutions operate at 1000V or 1500V DC. Higher voltage means:

• Lower current for the same power output
• Reduced heat generation
• Less stress on IGBT modules
• Smaller cable size and lower BOS cost

We’ve seen projects where improper system design led to overheating issues—not because of bad components, but because the architecture wasn’t optimized from the start.

This is the kind of problem that doesn’t show up in datasheets—but shows up in real installations.

Integration: PCS Is Not Plug-and-Play

One of the biggest misconceptions is assuming PCS works like a solar inverter. It doesn’t.

A PCS must constantly communicate with the Battery Management System (BMS). It adjusts charging and discharging in real time based on:

• Cell voltage
• Temperature
• State of Charge (SoC)

If this coordination isn’t done properly, you’ll see:

• Faster battery degradation
• Reduced cycle life
• Potential safety risks

That’s why PCS selection is not just about specs—it’s about system compatibility.

So Which One Should You Choose?

Here’s the simplest way to think about it:

• If your goal is just solar generation → use an inverter
• If your goal is energy control, storage, and optimization → you need a PCS

In fact, in many modern industrial projects, relying on solar alone (without storage) is already becoming outdated—especially in regions with peak demand charges or unstable grid conditions.

Friendly Reminder

The difference between an inverter and a PCS isn’t just technical—it defines what your energy system is capable of.

If you're designing a future-ready system, the question is no longer whether to use storage—but how well your PCS is integrated into the system.

Frequently Asked Questions (FAQ)

1. Can I use a standard solar inverter for a battery project?

No. Standard inverters are one-way devices. To charge a battery from the grid or solar for later use, you need the bi-directional capabilities of a PCS.

2. How does 1000V DC help my project?

High-voltage DC (1000V+) reduces current flow, which minimizes heat loss and allows for thinner, less expensive cabling, improving overall system ROI.

3. Is PCS more expensive than an inverter?

Generally, yes, because of the bi-directional hardware and advanced grid-support software. However, it is the only way to access revenue streams like peak shaving and frequency regulation.

4. What is 'Peak Shaving' in the context of PCS?

Peak shaving is the practice of using the PCS to discharge batteries during expensive high-demand periods, effectively capping your facility's power draw from the grid.

5. Do I need a separate PCS for an existing solar site?

In most retrofits, an AC-coupled PCS is added alongside the existing solar inverter. This allows the battery system to work independently while the solar system continues to generate power.
