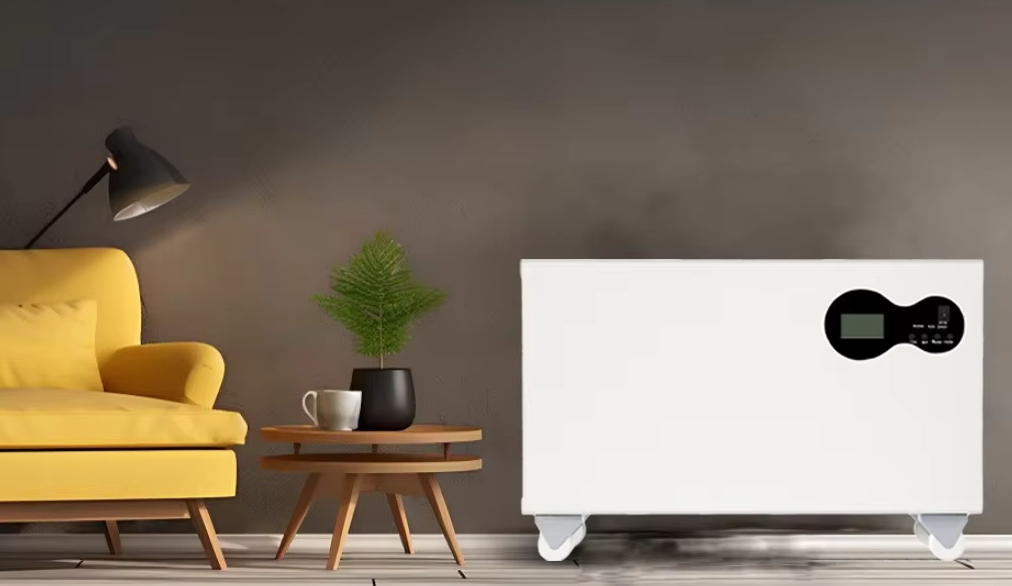

All In One Solar Cell For House
BND-AIO55-61 Solar Cell For House
· Easy Installation
· One-person installation
· Easy power output expansion
· Without cable connection, plug in & out
· Safety and Reliability
· High cycle stability and long lifespan
· Whole system warranty
· Smart 0&M
· Auto under-voltage wakeup
· One-person installation
· Easy power output expansion
· Without cable connection, plug in & out
· Safety and Reliability
· High cycle stability and long lifespan
· Whole system warranty
· Smart 0&M
· Auto under-voltage wakeup
Delivery
EXW
minimum order
30 pieces
Supply Ability
1000000000pieces / Month
Stock Time
45Day
Quantity:
| Model | BND-AIO55-61 | |
| Main Parameter | BND-AIO55-61 | |
| Battery Chemistry LiFePO₄ | ||
| Capacity(Ah) 120 | ||
| Scalability Max.16 pcs in Parallel | ||
| Nominal Voltage(V) 51.2 | ||
| Operating Voltage(V) 43.2~57.6 | ||
| Energy(kWh) 6.14 | ||
| Charge/ Discharge Current(A) | Recommend 50 | |
| Max. 100 | ||
| Peak 120(30s,25℃) | ||
| Dimension(mm) | 630*250*415 | |
| Weight Approximate(kg) | ≈60 | |
| Master LCD Indicator | 4LED(SOC:25%~SOC100%),2LED(working,alarming),LCD | |
| IP Rating of Enclosure | IP20 | |
| Operating Temperature | Charge:0~+55℃/Discharge:-20℃~+55℃ | |
| Storage Temperature | 0℃~+35℃ | |
| Humidity | 5%~95% | |
| Altitude | ≤2000m | |
| Cycle Life | ≥6000(25℃±2℃,0.2C/0.2C,70%EOL) | |
| Installation | Floor Mounted Standing | |
| Communication Port | CAN,RS485,RS232 | |
| Warranty Period 5 years | ||
| Certification UN38.3,CE | ||
| Inverter Specification | BND-MAS5548(A)HF | |
| Input | Phase L+N+PE | |
| Nominal Voltage 220/230/240VAC | ||
| Voltage Range 90-280VAC±3V(Normal Mode)170-280VAC±3V(UPS Mode) | ||
| Frequency Range 50Hz/60Hz(Adaptive) | ||
| Output | Rated Power 5500W | |
| Output Voltage(AC) 220/230/240VAC±5% | ||
| Output Frequency 50/60Hz±0.1% | ||
| Waveform PURE SINE WAVE | ||
| Transfer Time(Optional) ≤10ms(UPS mode)/≤20ms(INV mode) | ||
| Peak power 10000VA | ||
| Battery Mode: 1min@102%~110%Load Overload 10s@110%~130%Load 3s@130%~150%Load 200ms@>150%Load” | ||
| Peak efficiency (battery mode) >94% | ||
| charger | PV charging method MPPT | |
| PV max input power 5500W | ||
| MPPT tracking range 120~500Vdc | ||
| Max PV input voltage 500Vdc | ||
| Max PV charging current 100A | ||
| Max AC charging current 60A | ||
| Max charging current 100A | ||
| Display | LCD display Operating mode/load/input/output,etc. | |
| Environmental parameters | Operating environment temperature 0~40℃ | |
| Operating environment humidity 20%~95%(Non condensing) | ||
| Storage temperature -15~60℃ | ||
| Altitude The altitude should not exceed 1000m,derating above 1000m,up to 4000m | ||
| noise ≤50db | ||
| Certification | EN-IEC 60335-1,EN-IEC 60335-2-29,IEC 62109-1 | |
