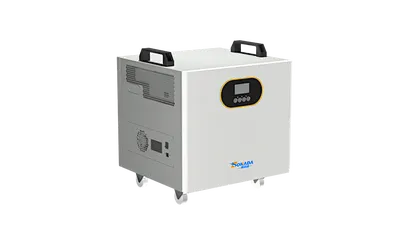

8KWh Smart O&M All In One Solar Battery
BND-AIO35-80HFSP
Easy Installation
· One-person installation
· Easy power output expansion
· Without cable connection, plug in & out
Safety and Reliability
· High cycle stability and long lifespan
· Whole system warranty
Smart O&M
· Auto under-voltage wakeup
Product feature
·With WiFi module, Bluetooth module,
Compact in size
·Featuring a four-wheel design, equipped
·with AC output, suitable for both home and outdoor use.
· One-person installation
· Easy power output expansion
· Without cable connection, plug in & out
Safety and Reliability
· High cycle stability and long lifespan
· Whole system warranty
Smart O&M
· Auto under-voltage wakeup
Product feature
·With WiFi module, Bluetooth module,
Compact in size
·Featuring a four-wheel design, equipped
·with AC output, suitable for both home and outdoor use.
Delivery
EXW
minimum order
30 pieces
Supply Ability
1000000000pieces / Month
Stock Time
45Day
Quantity:
8KWh 5 years Warranty Period All In One Solar System
| Model | BND-AIO35-80HFSP | |
| Main Parameter | ||
| Battery Chemistry | LiFePO₄ | |
| Capacity(Ah) | 314 | |
| Nominal Voltage(V) | 25.6 | |
| Operating Voltage(V) | 21.6~28.8 | |
| Energy(KWh) | 8 | |
| Charge/ | Recommend | 80 |
| Discharge | Max. | 150 |
| Curent (A) Peak | 160(30s,25℃) | |
| Dimension (mm) | 430*410*380 | |
| Weight Approximate(kg) | ≈71 | |
| Master LCD Indicator | LCD(Power,Voltage,Current,Battery bar display) 3LED(working,charge,fault) | |
| IP Rating of Enclosure | IP21 | |
| Operating Temperature | Charge:0~+55℃/Discharge:-20℃~+55℃ | |
| Storage Temperature | 0℃~+35℃ | |
| Humidity | 5%~95% | |
| Altitude | ≤2000m | |
| Cycle Life | ≥6000(25℃±2℃,0.2C/0.2C,70%EOL)(DOC80%) | |
| Installation | Floor standing | |
| Communication Port | RS485,RS232 | |
| Warranty Period | 5 years | |
| Certification | UN38.3,CE | |
| Inverter Specification | ||
| Input | Phase | L+N+PE |
| Nominal Voltage | 220/230/240VAC | |
| Voltage Range | 90-280VAC±3V(Normal Mode)170-280VAC±3V(UPS Mode) | |
| Frequency Range | 50Hz/60Hz(Adaptive) | |
| Output | Rated Power | 3.5KVA/3.5KW |
| Output Voltage(AC) | 220/230/240VAC±5% | |
| Output Frequency | 50/60Hz±0.1% | |
| Waveform | PURE SINE WAVE | |
| Transfer Time(Optional) | ≤10ms(UPS mode)/≤20ms (INV mode) | |
| Peak power | 8000VA | |
| Overload | Battery Mode: | |
| 1min@102%~110%Load | ||
| 11s@105%~150%Load | ||
| 2s@150%~200%Load | ||
| 400ms@>200%Load | ||
| Peak efficiency (battery mode) | >94% | |
| charger | PV charging method | MPPT |
| PVmax input power | 6500W | |
| MPPT tracking range | 60~500VDC | |
| Max PV input voltage | 500Vdc | |
| MaxPV charging current | 120A | |
| Max AC charging current | 100A | |
| Max charging current | 120A | |
| Display | LCD display | Operating mode/load/input/output,etc. |
| Environmental parameters | Operating environment temperature | -10~50℃ |
| Operating environment humidity | 20%~95%(Non condensing) | |
| Storage temperature | -15~60℃ | |
| Altitude | The altitude should not exceed 1000m,derating above 1000m,up to 4000m | |
| noise | ≤50db | |
| Crtification | EN-IEC 60335-1,EN-EC 60335-2-29,EC 62109-1 | |
